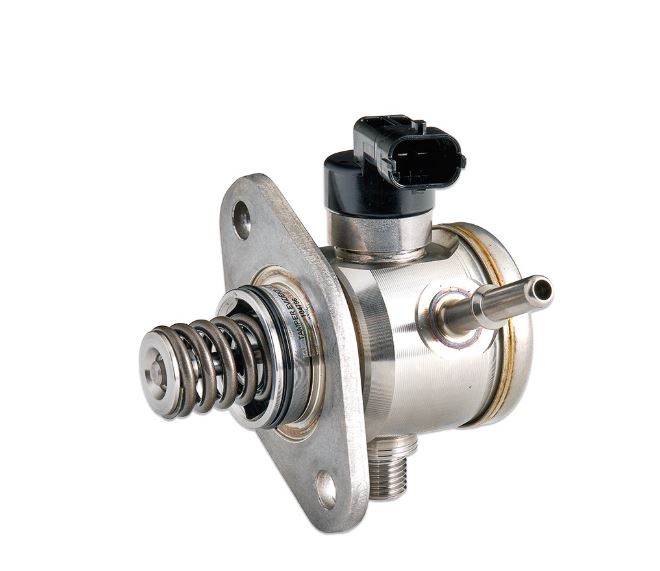

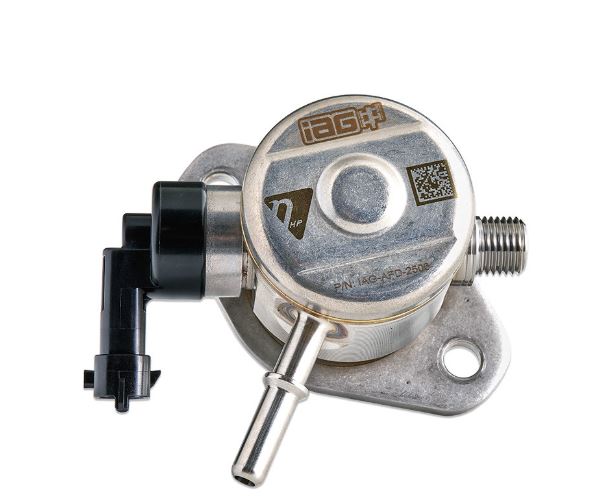

IAG SPEC HIGH-PRESSURE FUEL PUMP BY NOSTRUM FOR 2022+ SUBARU WRX

THE IAG SPEC FA24 HIGH- PRESSURE FUEL PUMP BY NOSTRUM

IAG Performance and Nostrum have teamed up to deliver the IAG Spec FA24 High-Pressure Fuel Pump by Nostrum. This direct-fit pump is tailored for 2022+ WRX, 2019+ Ascent, 2020+ Legacy XT Sport, and 2020+ Outback XT & Wilderness Subaru models equipped with the FA24 2.4L engine. As the first and only complete high-pressure fuel pump upgrade for FA24 engines, this Nostrum pump offers increased fuel flow, optimizing your engine’s power output and performance.

37% HIGHER FUEL FLOW

Delivering up to 37% more fuel flow than the stock Subaru pump, the IAG Spec FA24 High-Pressure Fuel Pump by Nostrum provides plenty of fuel to allow for more boost at lower RPMs, resulting in an improvement in low-end torque. For the ultimate fuel delivery package, use this pump in conjunction with the IAG Spec FA24 Hi-Flow Direct Fuel Injector Set by Nostrum. These injectors offer a 24% increase in flow over OEM Subaru injectors, opening up new potential for horsepower gains.

E85 COMPATIBLE

The IAG Spec FA24 High-Pressure Fuel Pump by Nostrum is compatible to run on E85 and blended ethanol fuels. E85 not only boosts horsepower but also offers a multitude of additional benefits; it burns cleaner and cooler than regular gasoline, it has a higher resistance to detonation (knock), and it’s a cost-effective option for race fuel. When properly tuned and paired with E85-compatible fuel system components, this pump ensures consistent, high-performance fuel delivery, even under the tough demands of E85 and ethanol blends.

FUEL PUMP SPECS

WHP potential on gasoline: 725WHP (Based on 6500 RPM power peak, 290 BSFC, 75% VE, 90% driveline).
WHP potential on E85: 585WHP (Based on 6500 RPM power peak, 360 BSFC, 75% VE, 90% driveline).
Tune Requirement: No
Recommended Tuning Suite: COBB for WRX, Ascent, Legacy, Outback (WRX only after 2022 due to COBB support).
Displacement increase over Stock: 37% (based on 11.67 mm bore vs 9.98 mm bore)
Geometric displacement: 1.597 cc/rev
Max Operating Pressure: 200 bar / 20 MPa / 2900 psi

IAG Spec FA24 High-Pressure Fuel Pump Straightforward Install

STRAIGHTFORWARD INSTALLATION

The IAG Spec FA24 High-Pressure Fuel Pump by Nostrum is designed to fit directly onto the same mounting base as the stock Subaru pump. Nostrum's precise fitment, complete with all the necessary fittings and hardware ensures a straightforward installation without the need for modifications. With moderate mechanical experience, the installation process can be completed in about an hour using basic hand tools.

WORKS WITH COBB

While tuning isn’t necessary after installation of the IAG Spec High-Pressure Fuel Pump, it's highly recommended for optimal performance. The High-Pressure Pump and High-Flow Fuel Injectors are each compatible with the stock Subaru ECU, and can also be adjusted with COBB engine management devices for even better results. See below for a list of Nostrum Certified Tuners. (Injectors sold separately).

ABOUT NOSTRUM

Nostrum is a trusted name in the automotive industry, specializing in high-performance fuel system solutions. Their products are meticulously engineered and rigorously tested to meet or exceed OEM standards. Nostrum's dedication to in-vehicle development and calibration ensures that their fuel components are optimized for peak performance. Together, Nostrum and IAG have formed a perfect partnership to bring you the very best in innovative, high-performance fuel solutions for your Subaru.
