ICO 2.5 Series Coilover Kits

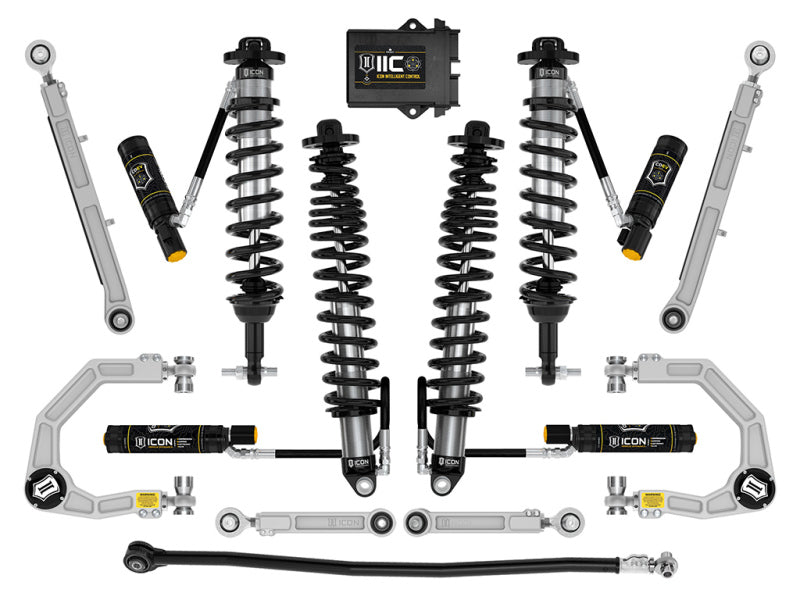

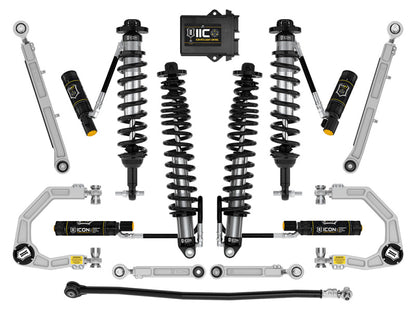

The ICON Vehicle Dynamics Stage 8 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDEV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. ICON's Top of The Range suspension system features lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use

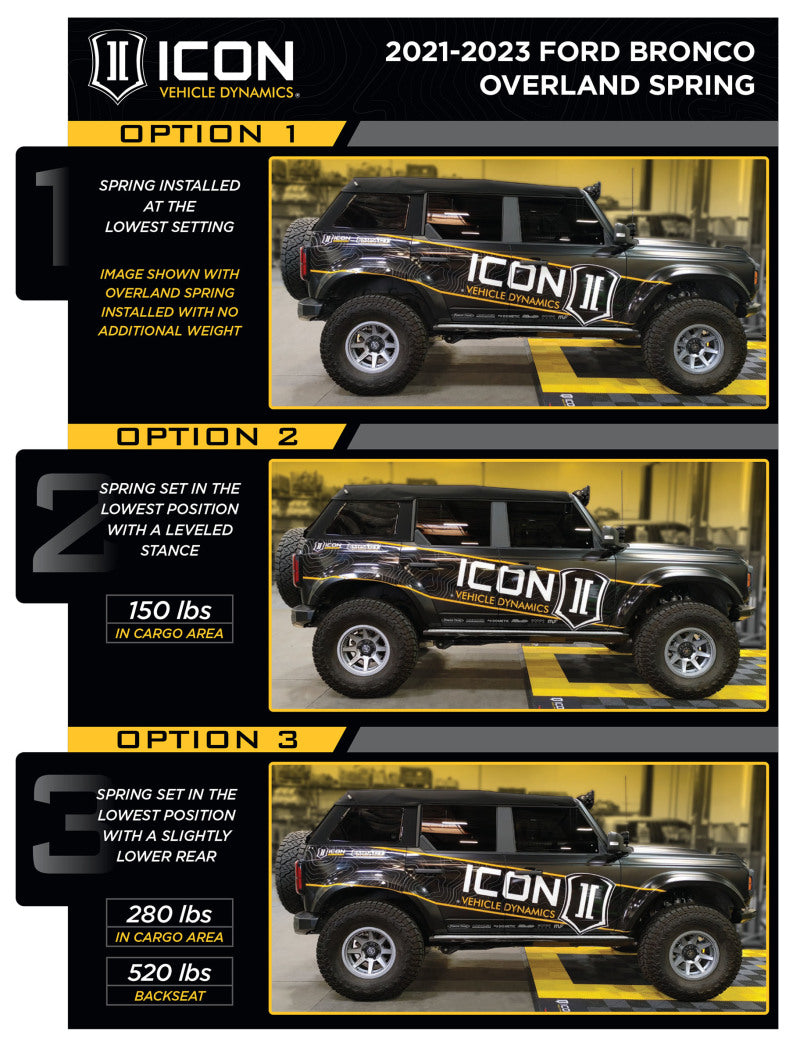

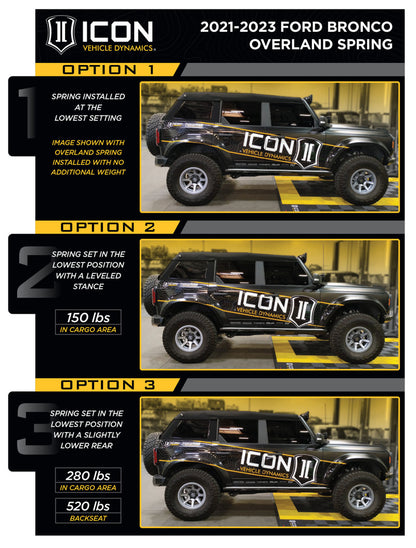

• ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos

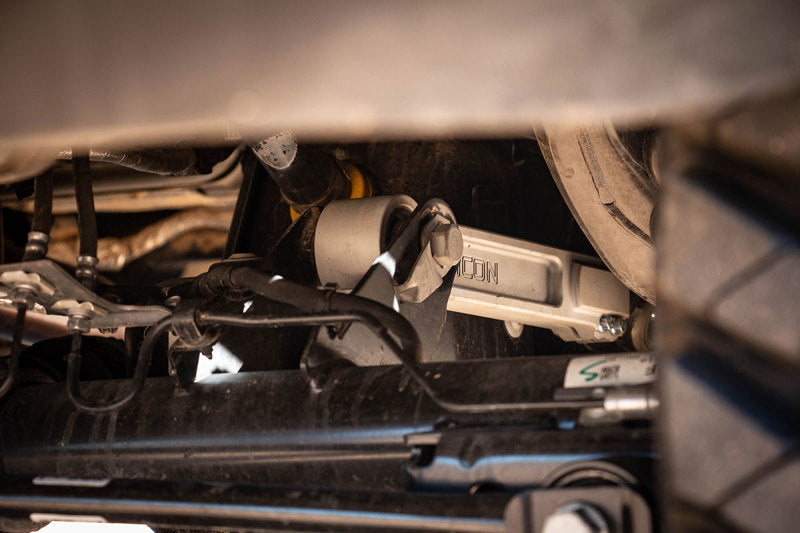

• Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind

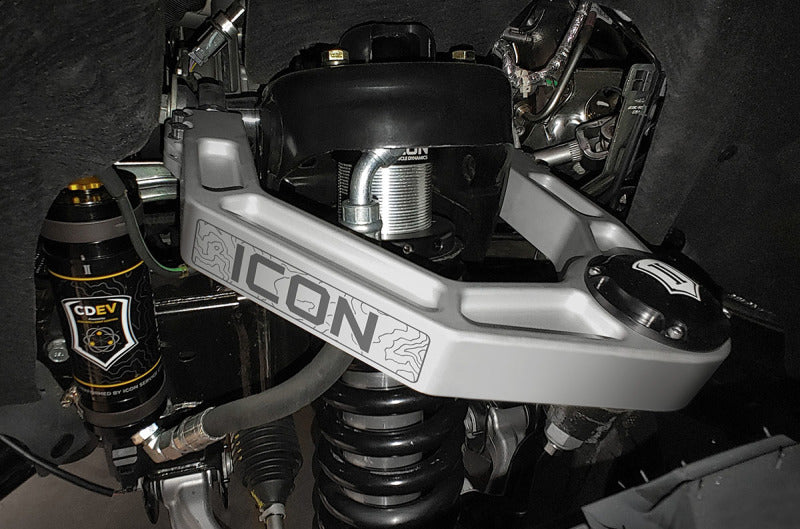

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

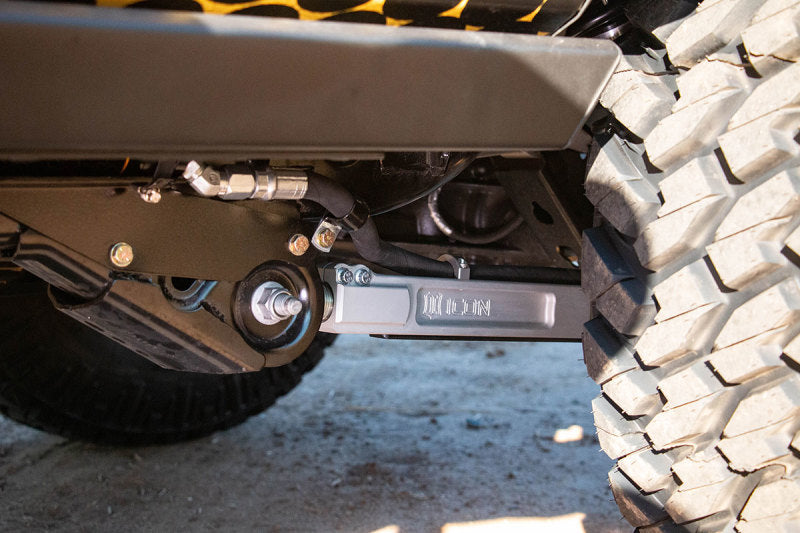

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• PTFE lined spherical bearings and application specific mounting hardware
• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
• Improved suspension performance and ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pins
