ICON 14-18 Ram 2500 4WD 4.5in Stage 3 Suspension System (Air Ride)

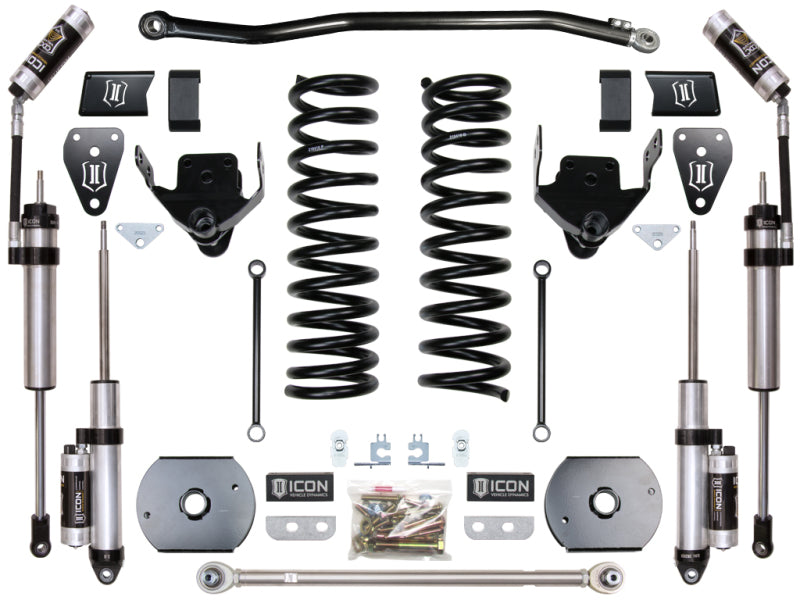

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.

• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Fabricated rear air bag spacers and sensor linkages allow use of stock rear air springs and provide 3.75" of rear lift over stock
• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• Increased wheel travel and suspension performance over stock with no change in towing capacity
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Adjustable front and rear track bars realign axles and improve strength
• Level stance from front to rear of vehicle
