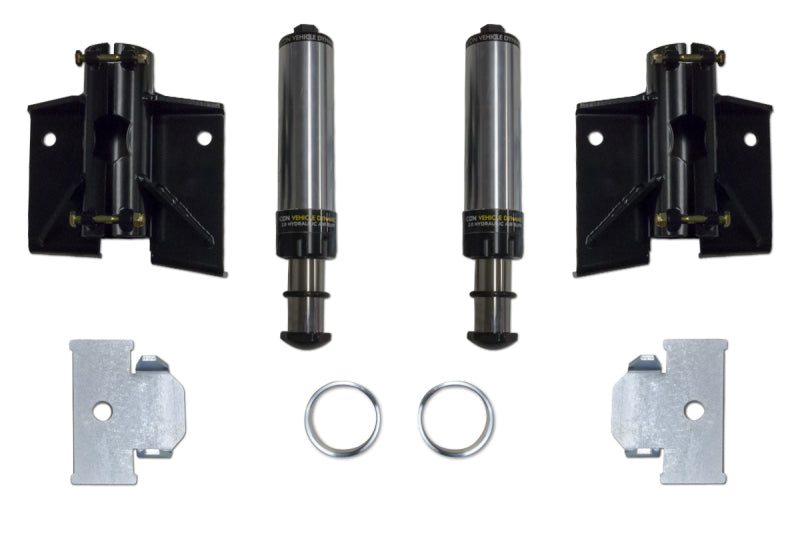

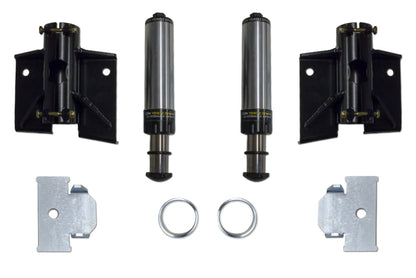

  • Photo - Primary

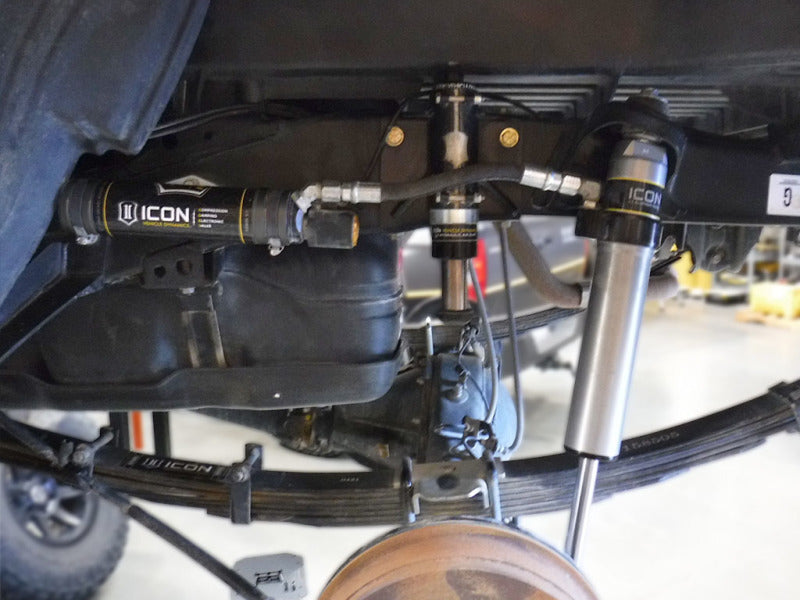

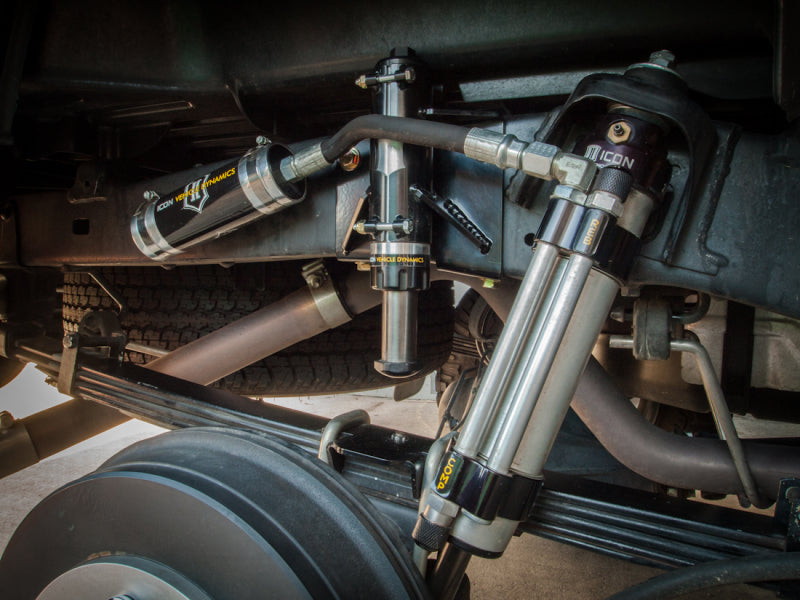

  • Photo - Mounted
  • Photo - Mounted
  • Logo Image

ICON 2005+ Toyota Tacoma Rear Hydraulic Bump Stop Kit

  • Backed by real installs and tuning experience at FAST of West Chester
Awaiting stock, shipping soon

Everyday Low Price:

$1,079.05
$1,079.05
Shipping calculated at checkout.

Get it fast — Order now.

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Earn FAST WC Points on this order — redeem on your next purchase

Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.

Installation Instructions
Installation Instructions
  • Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
  • Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
  • Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
  • Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
  • Bolt-on design using existing holes in frame for clean install with no cutting or welding
  • Anodized billet top cap, o-ring sealed back up cap, seal head and striker
  • Urethane rod seal and wiper for long service life
  • CAD Plated body for corrosion free service
  • Can be returned to stock
  • User serviceable

This Part Fits:

Year Make Model Submodel
2005-2015 Toyota Tacoma Base
2016-2023 Toyota Tacoma Limited
2005-2015 Toyota Tacoma Pre Runner
2016-2023 Toyota Tacoma SR
2016-2023 Toyota Tacoma SR5
2021 Toyota Tacoma Trail
2023 Toyota Tacoma Trail Special Edition
2016-2023 Toyota Tacoma TRD Off-Road
2015,2017-2023 Toyota Tacoma TRD Pro
2016-2023 Toyota Tacoma TRD Sport
2005-2013 Toyota Tacoma X-Runner
