ICON 2007+ Toyota Tundra RXT Stage 1 System

  • Backed by real installs and tuning experience at FAST of West Chester
Low stock! Only 1 left

Everyday Low Price:

$3,401.18
$3,401.18
Shipping calculated at checkout.

Get it fast — Order now.

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Earn FAST WC Points on this order — redeem on your next purchase

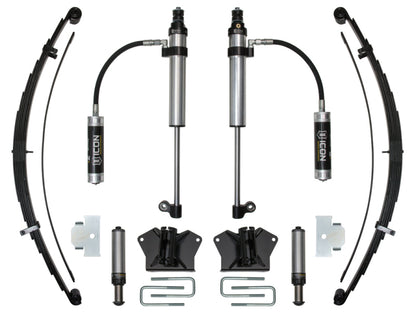

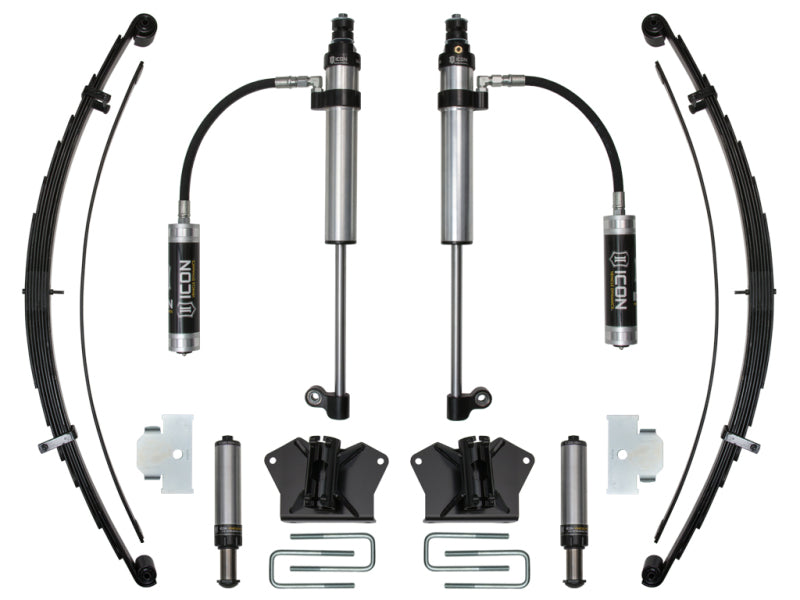

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all-new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

Installation Instructions
Installation Instructions
  • ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
  • ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
  • ICON RXT Rear Shock: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
  • ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
  • ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
  • ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
  • ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
  • ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
  • ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
  • ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
  • ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
  • ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25” CNC machined nitro steel shaft
  • ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
  • ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
  • ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
  • ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
  • ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
  • ICON RXT Rear Shock: Simple and straightforward installation
  • ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

This Part Fits:

Year Make Model Submodel
2014-2021 Toyota Tundra 1794 Edition
2007-2013 Toyota Tundra Base
2007-2021 Toyota Tundra Limited
2021 Toyota Tundra Nightshade
2010-2021 Toyota Tundra Platinum
2014-2021 Toyota Tundra SR
2007-2011,2014-2021 Toyota Tundra SR5
2021 Toyota Tundra Trail
2015-2017,2019-2021 Toyota Tundra TRD Pro
