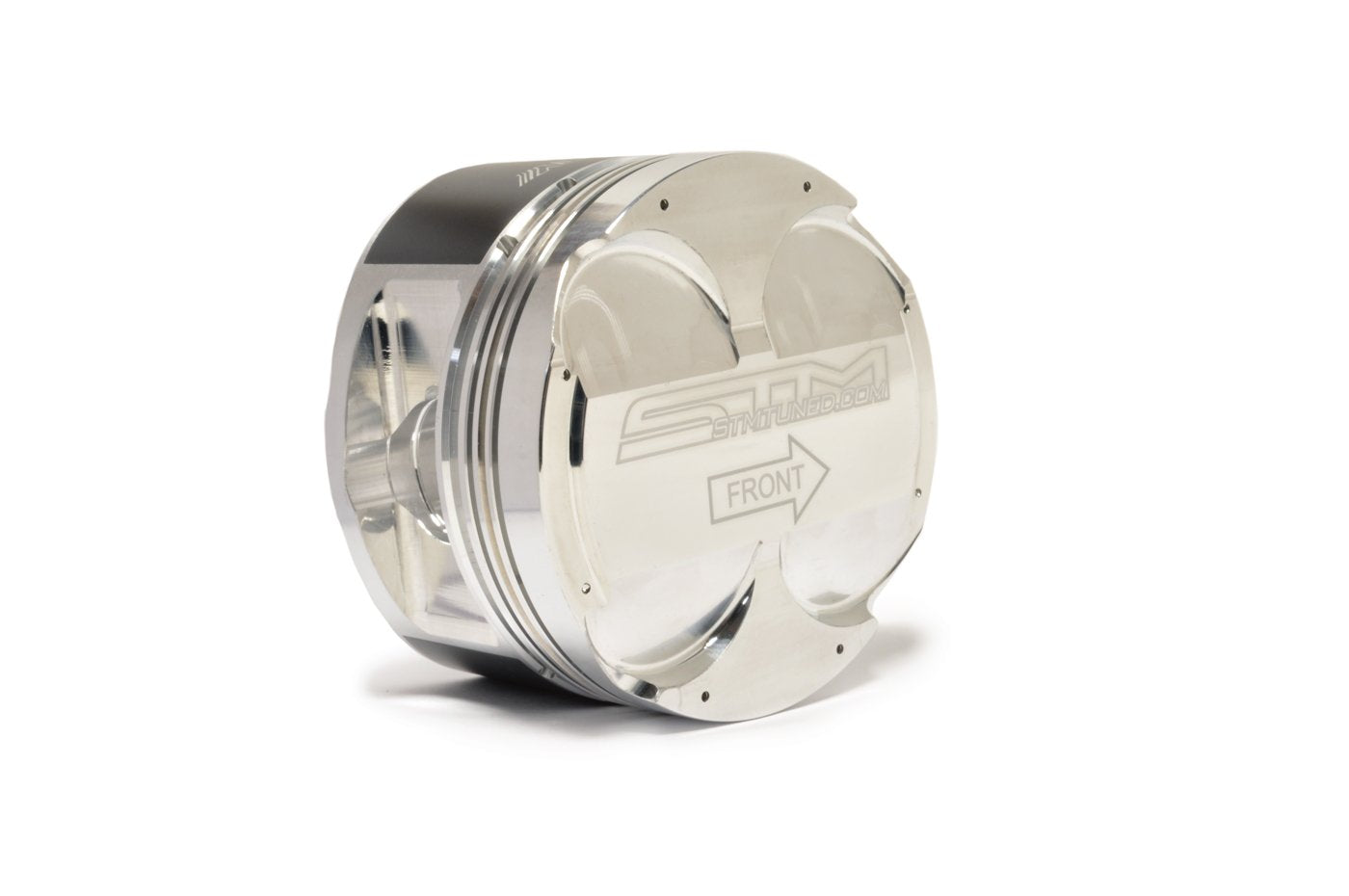

STM-Spec Manley Custom 11.5:1 Pistons for 4G63 Evo 4-9

  • Backed by real installs and tuning experience at FAST of West Chester

Everyday Low Price:

$864.17
$864.17
Shipping calculated at checkout.

Get it fast — Order now.

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Earn FAST WC Points on this order — redeem on your next purchase

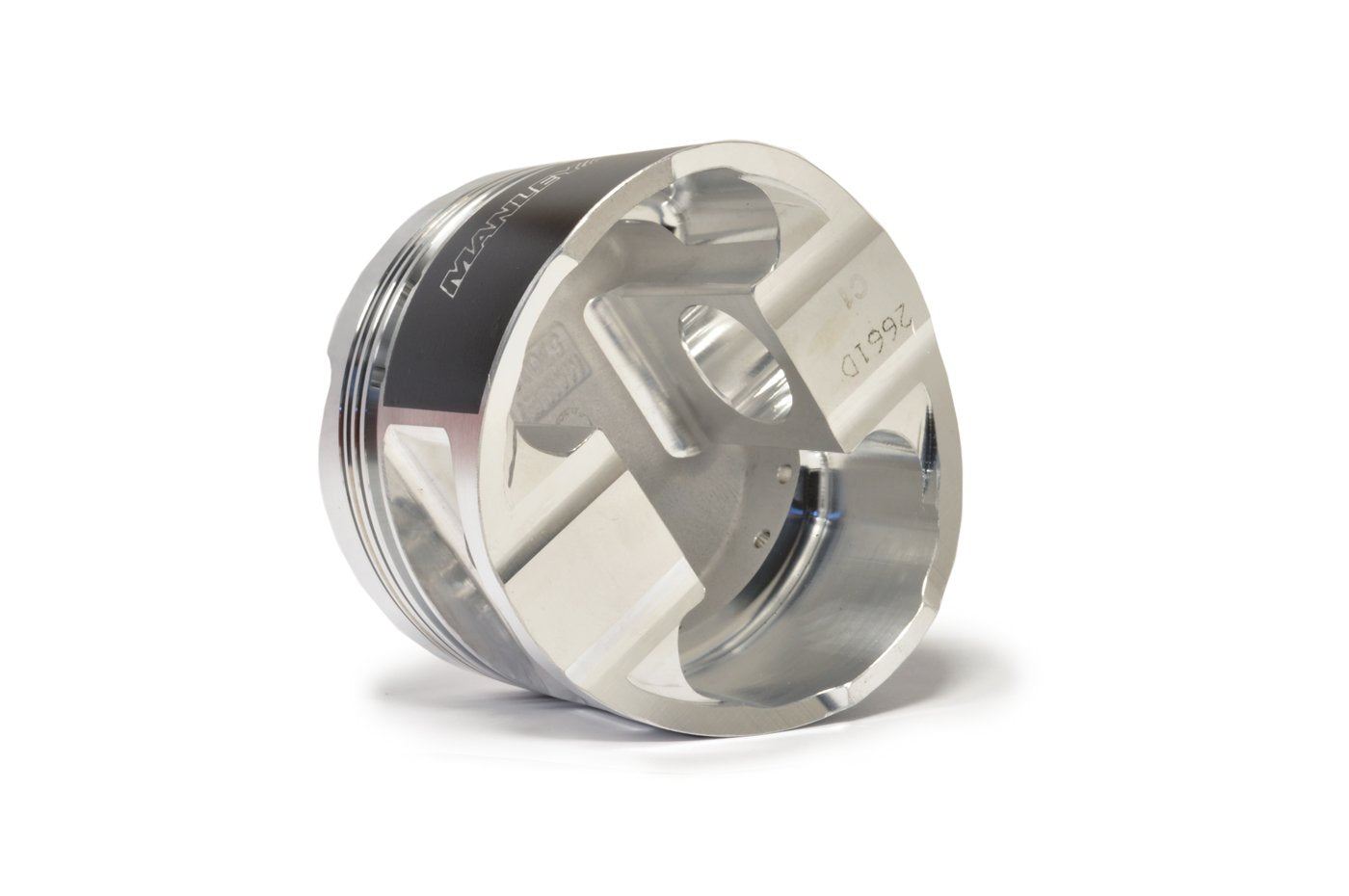

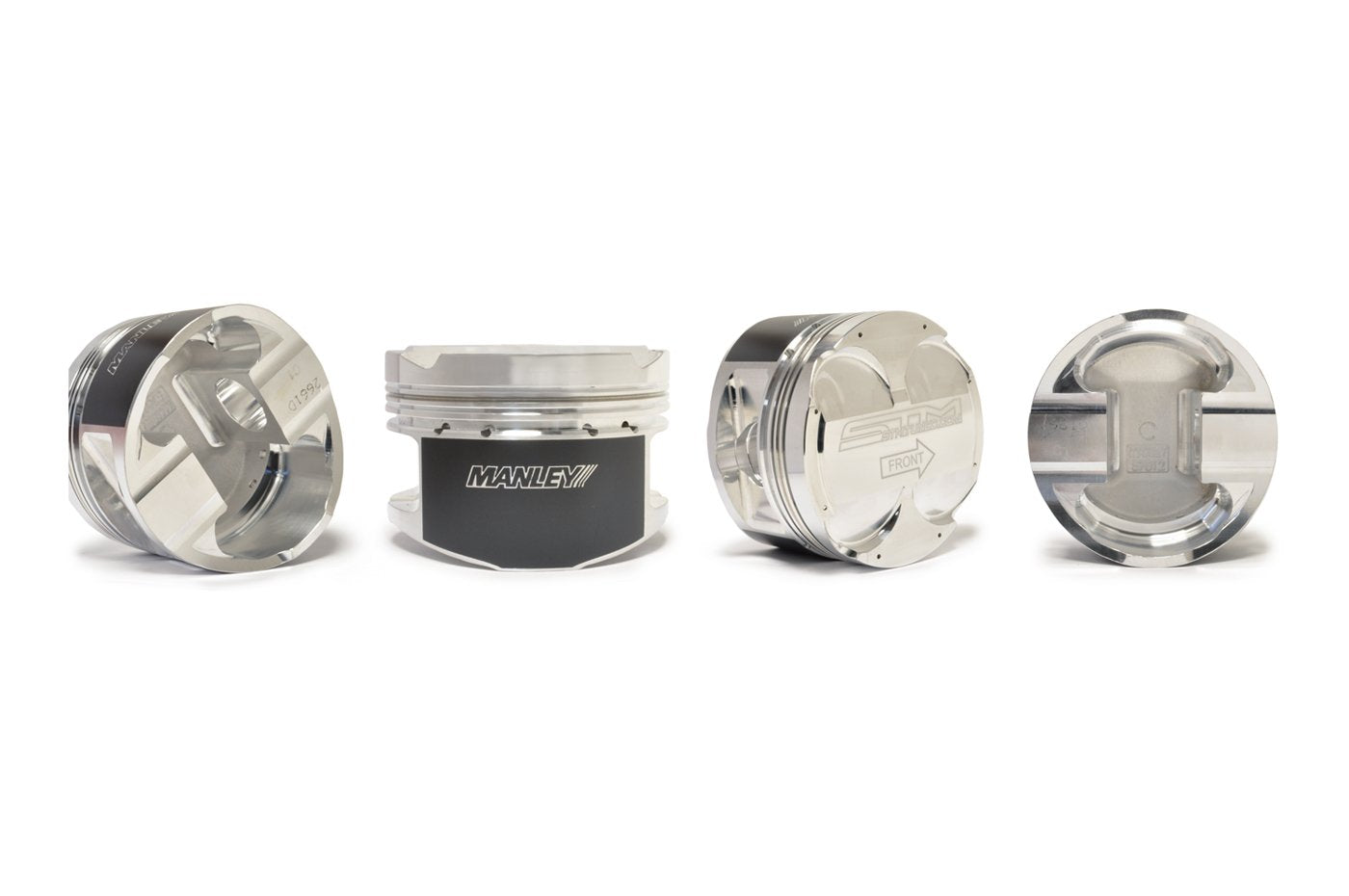

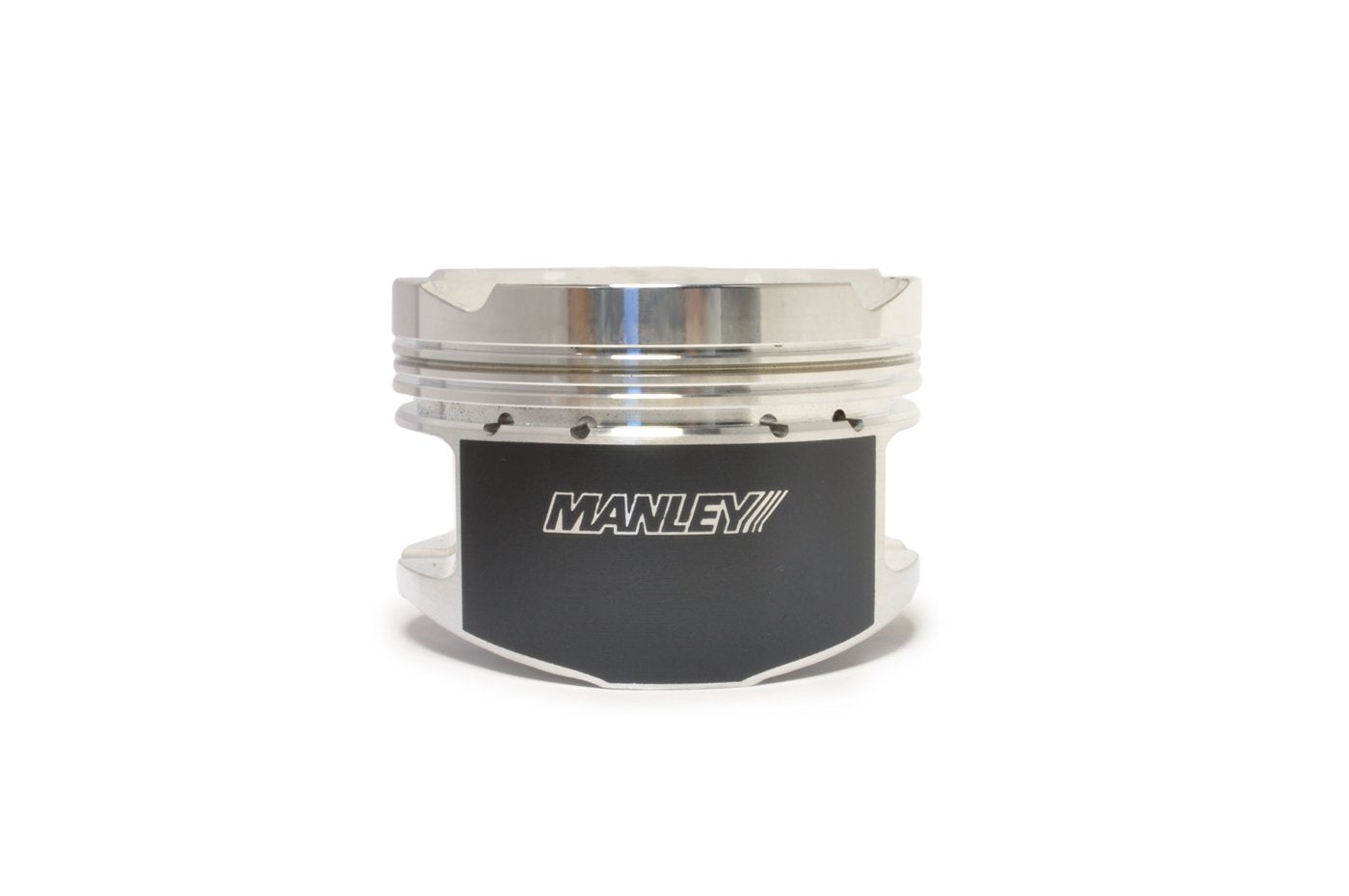

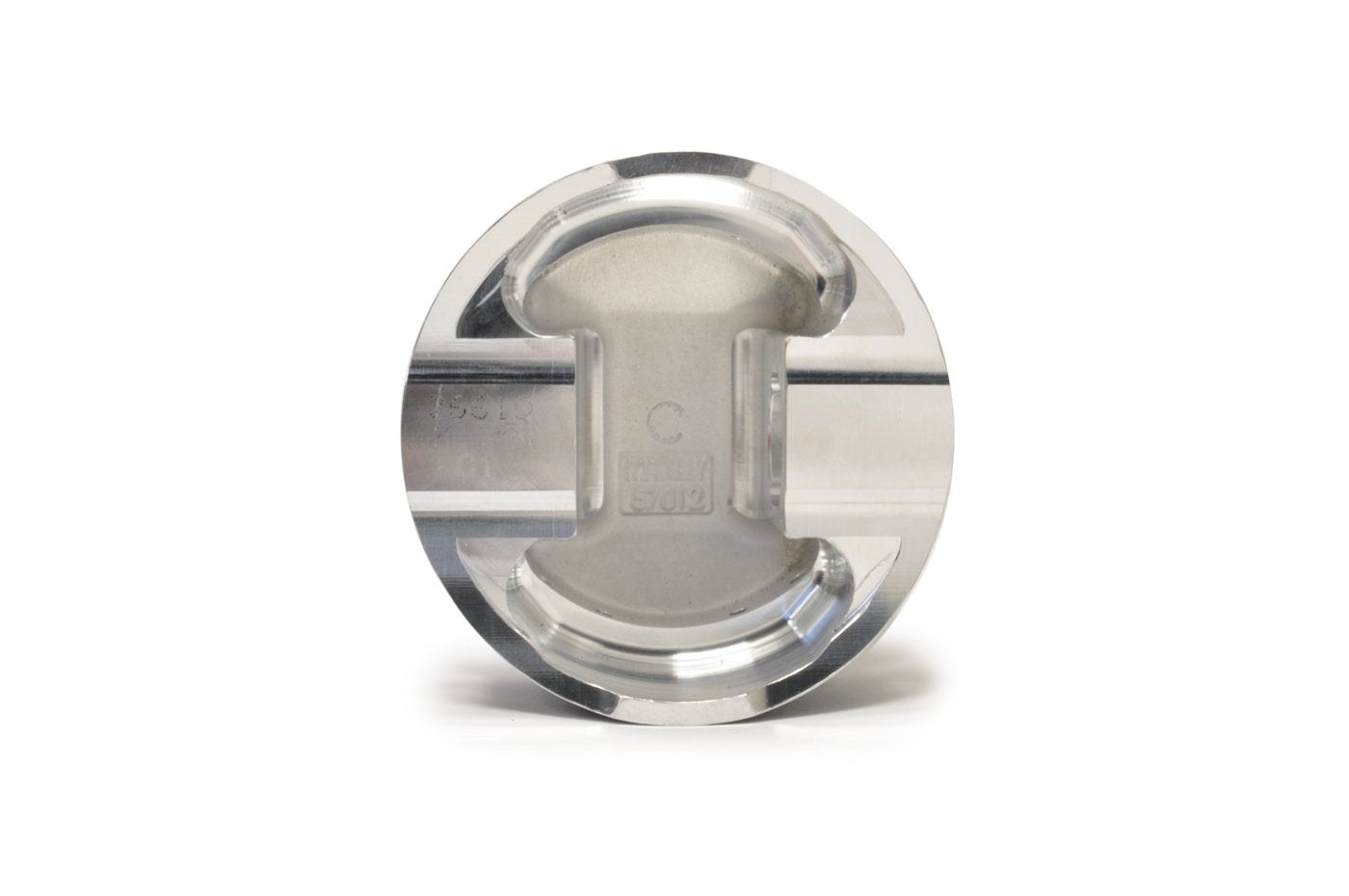

The STM-Spec Manley Evo IV-IX Custom 11.5:1 Pistons for 2.0L 4G63 are now available! These are the same gas ported pistons we have been testing in our STM Race Engines and easily trapping 165+ MPH in the 1/4! The STM-Spec Pistons are only available in 85.5mm bore and come with coated skirts, rings and wrist pins.

If you have questions about your build, feel free to give us a call and we will get you on the right path to your goals. STM-Spec Pistons are capable of handling all the power you can throw at them.

Vehicle Fitment:
1996-2006 Evolution 4/5/6/7/8/9
(2.0L 4G63 85.5mm Bore)

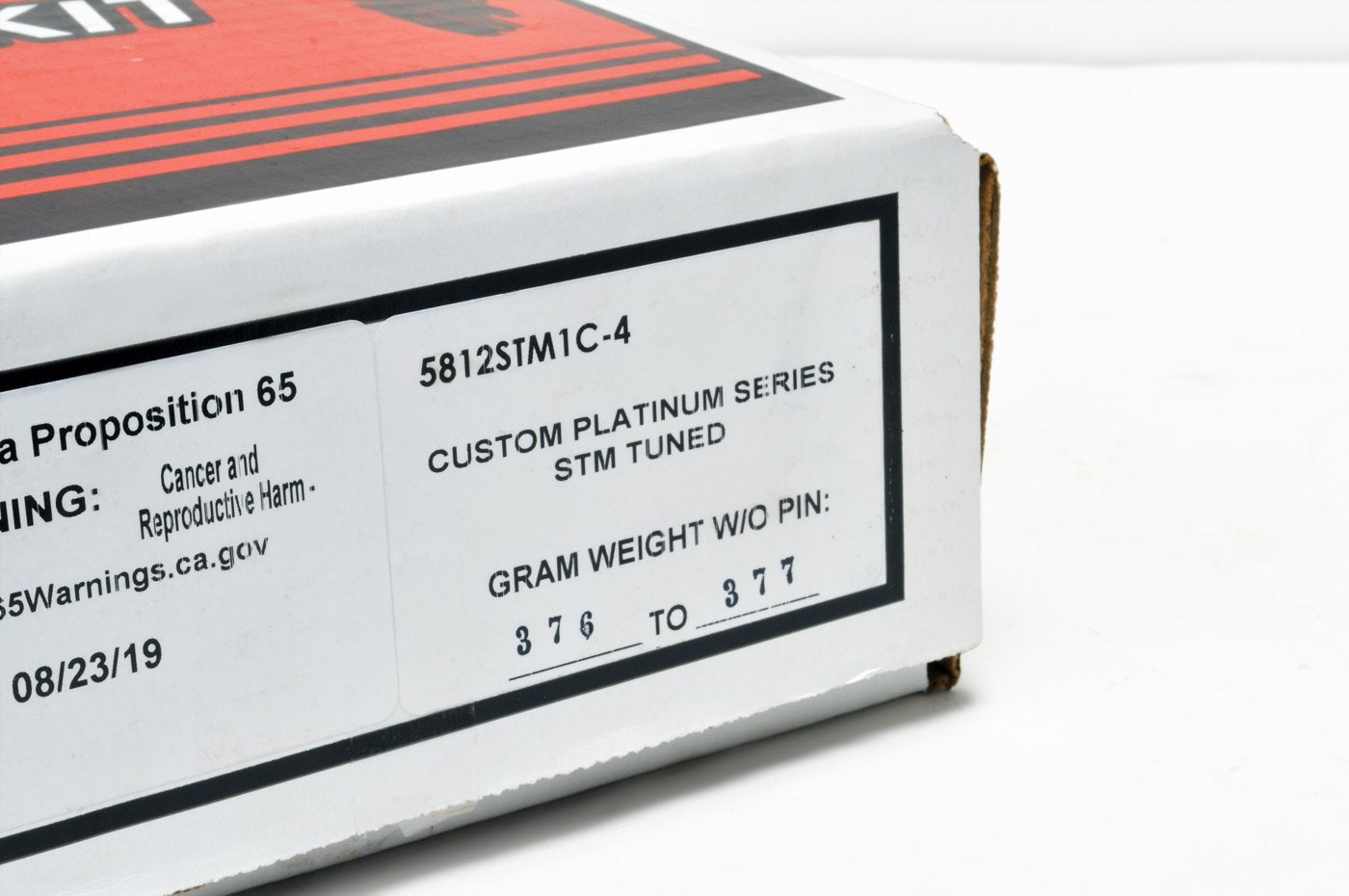

Part Number: 5812STM1C‑4

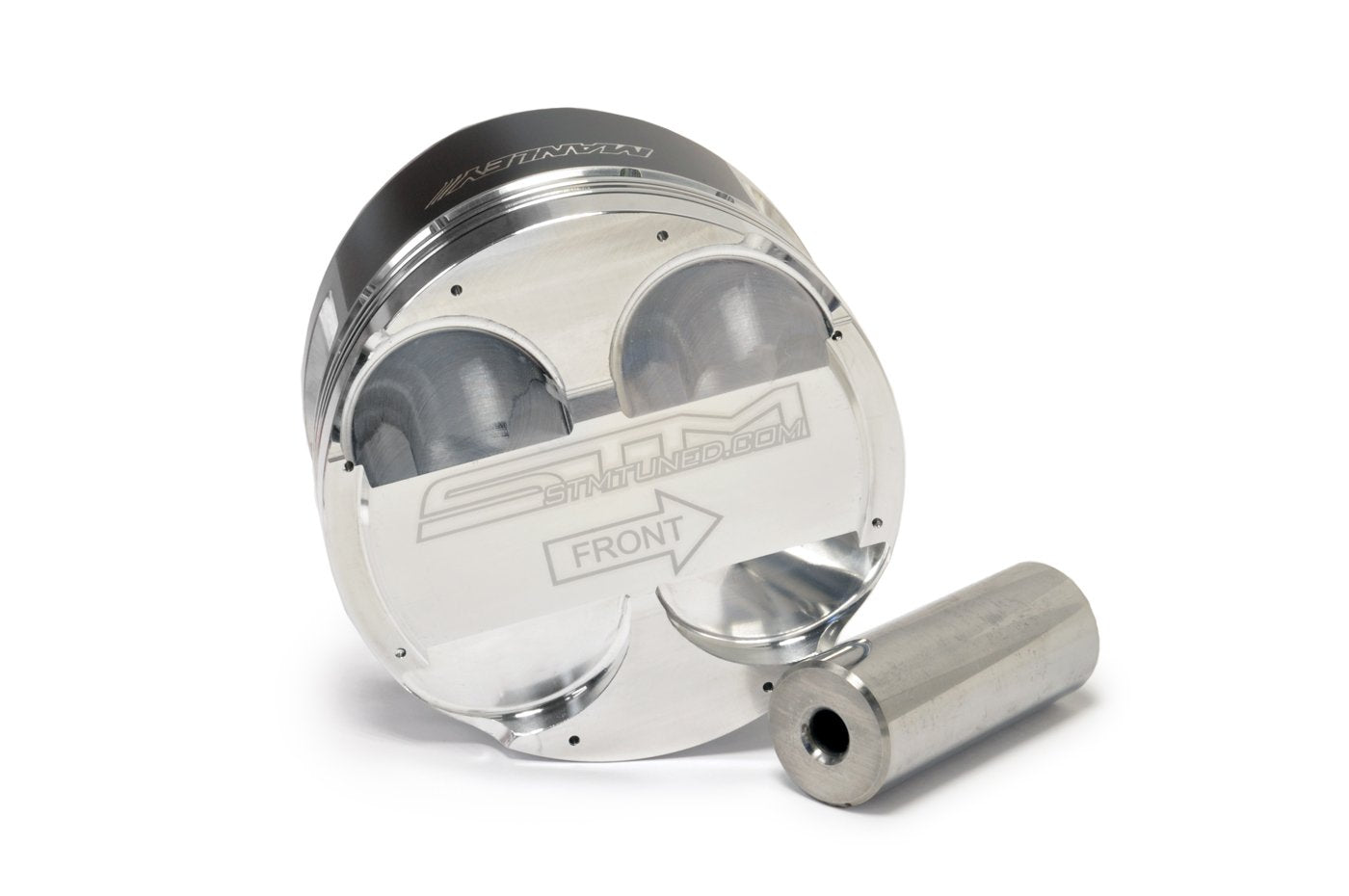

Pin: STM-Spec Pin
.250" Wall (9310 Alloy)
.866" / 22mm Pin
Bore Size: 85.5 +.5mm
Rod Length: 150 mm
Stroke: 88mm Standard Stroke (2.0L)
Cylinder Head cc: 43 cc
Compression Ratio: 11.5:1 for EVO
Weight: 376 Grams
Ring Set: 46855‑4

Features:
• Gas ported
• Moly coated skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• 9310 Alloy 2.250 x .250" Turbo Tuff HD wrist pin
• Pressure balance groove

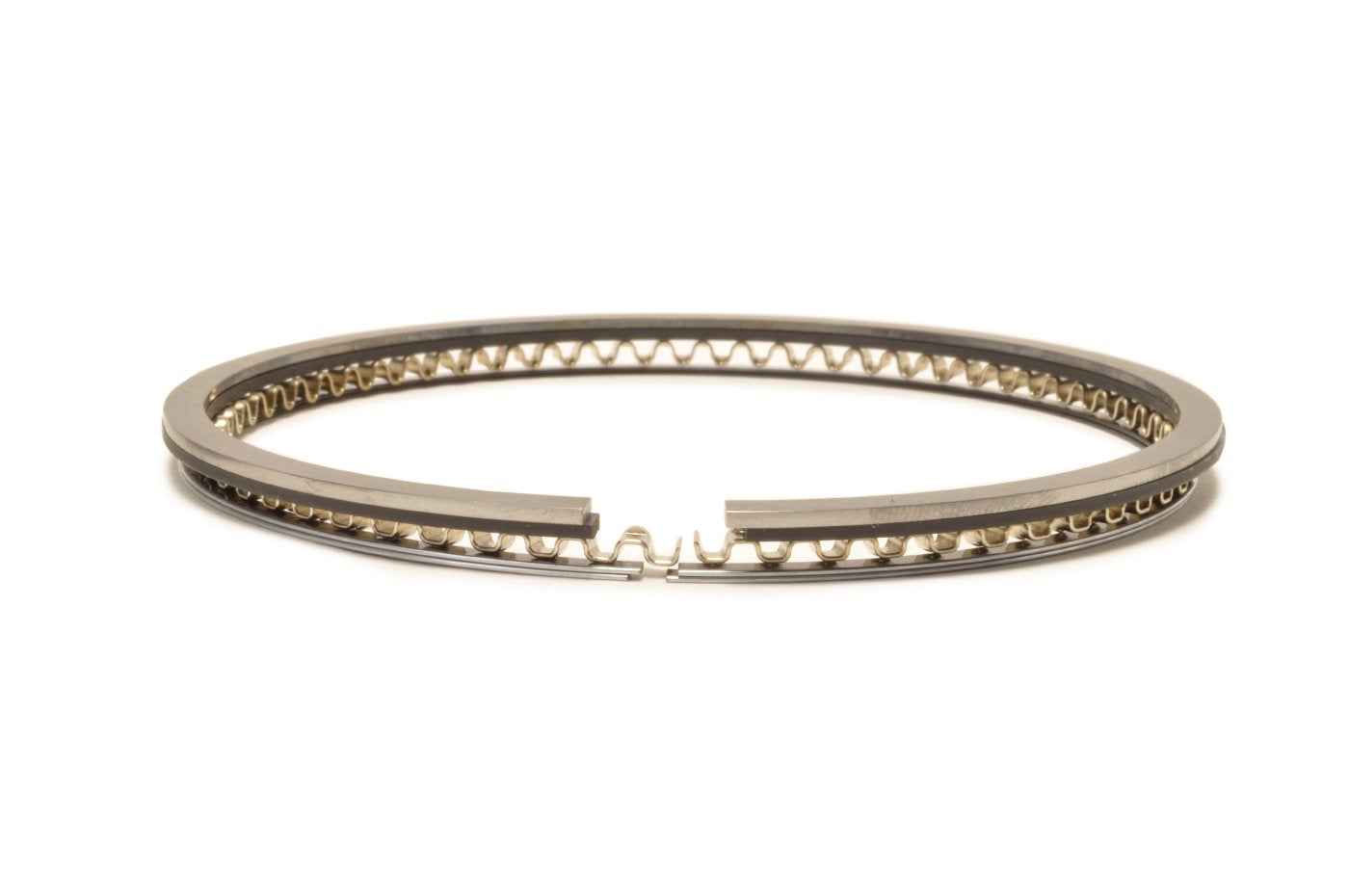

• Premium Steel top rings with Napier seconds and round wire locks include

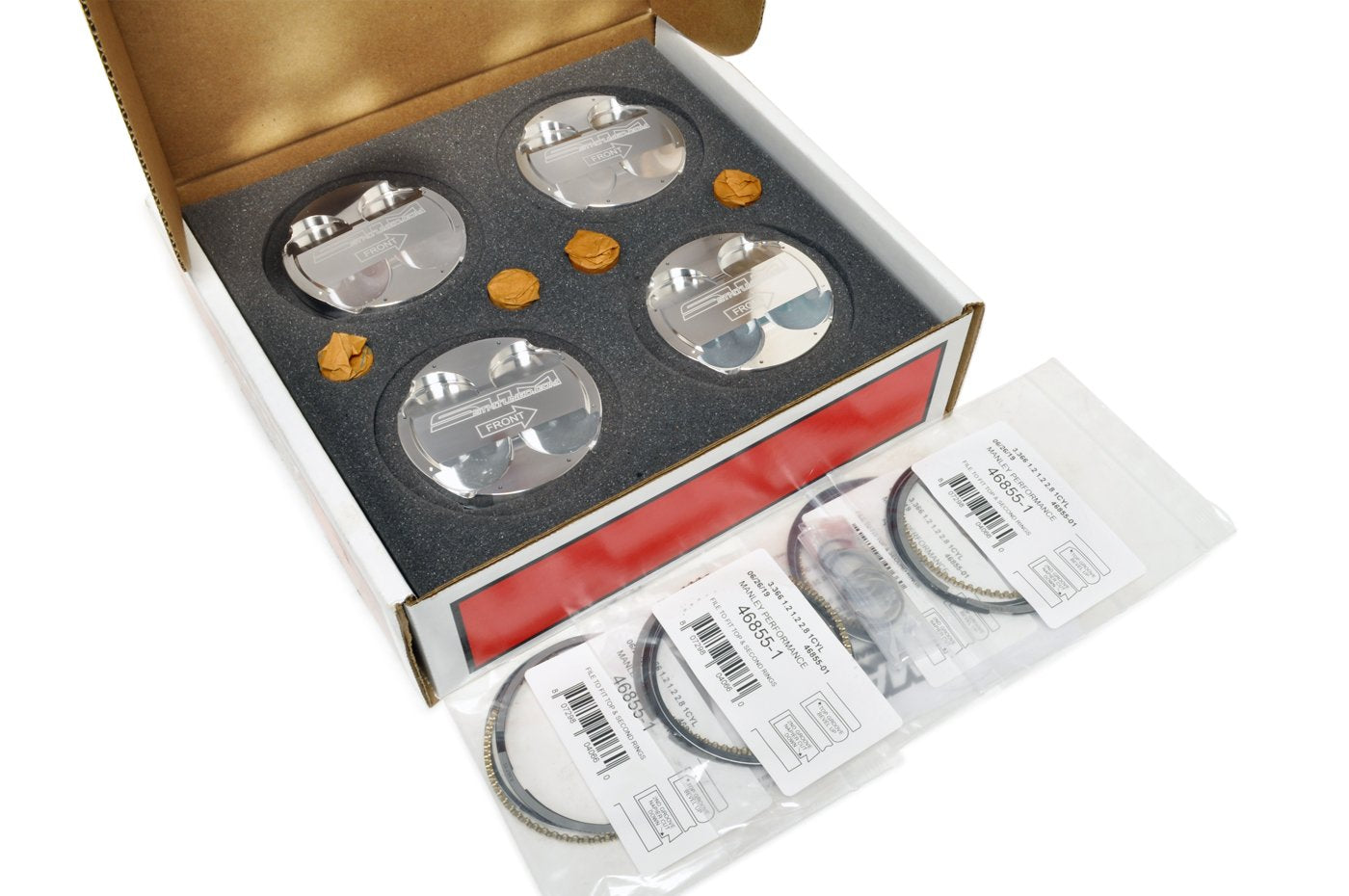

Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
